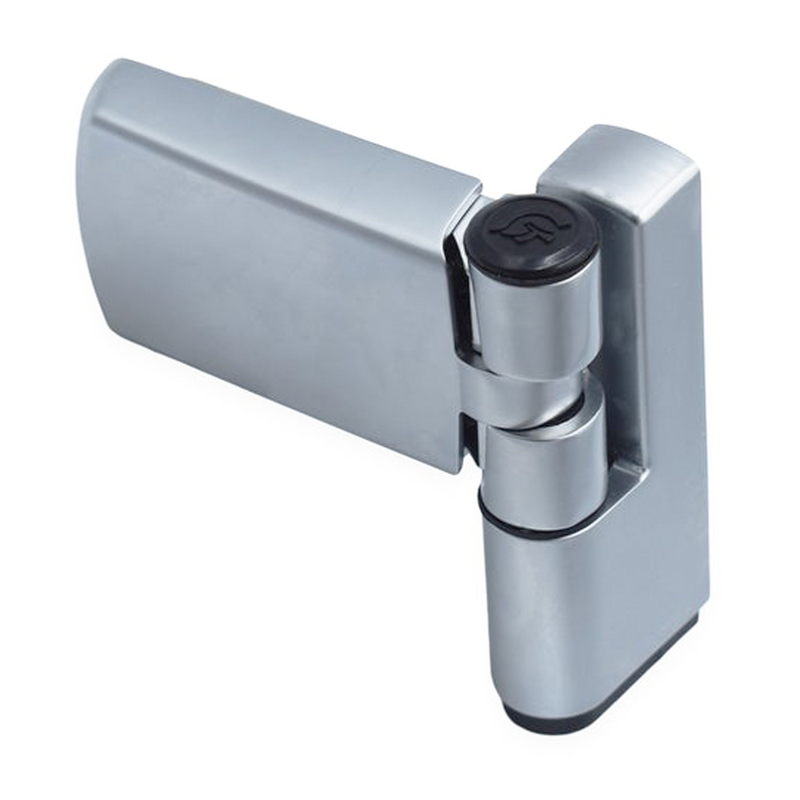

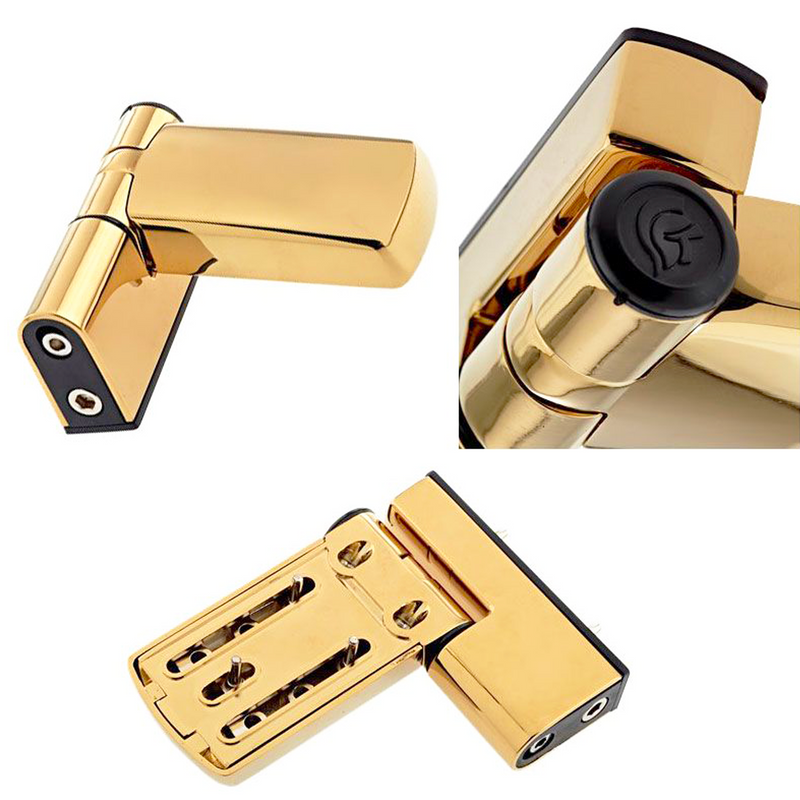

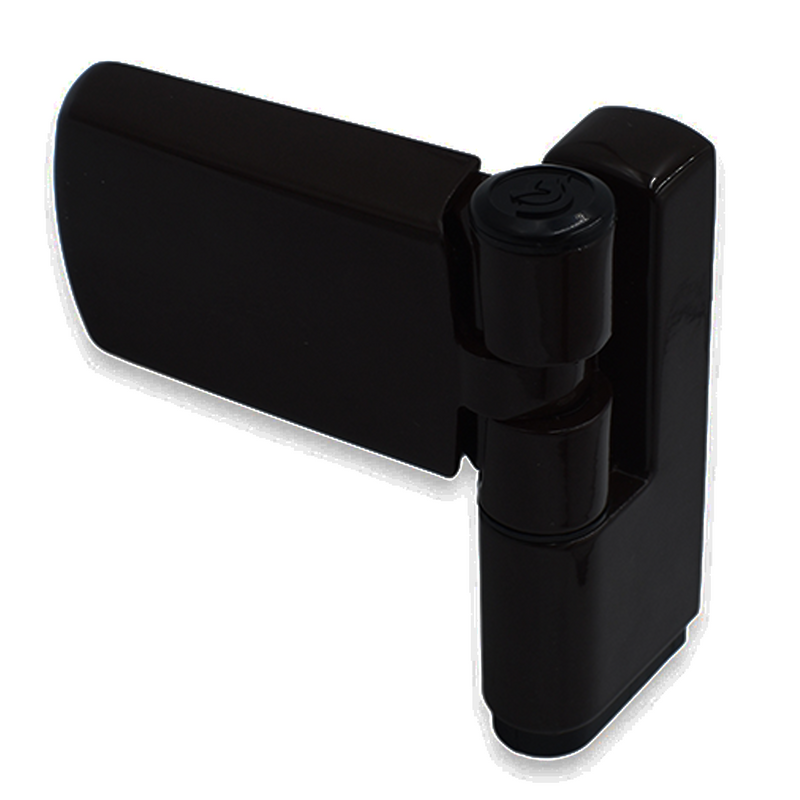

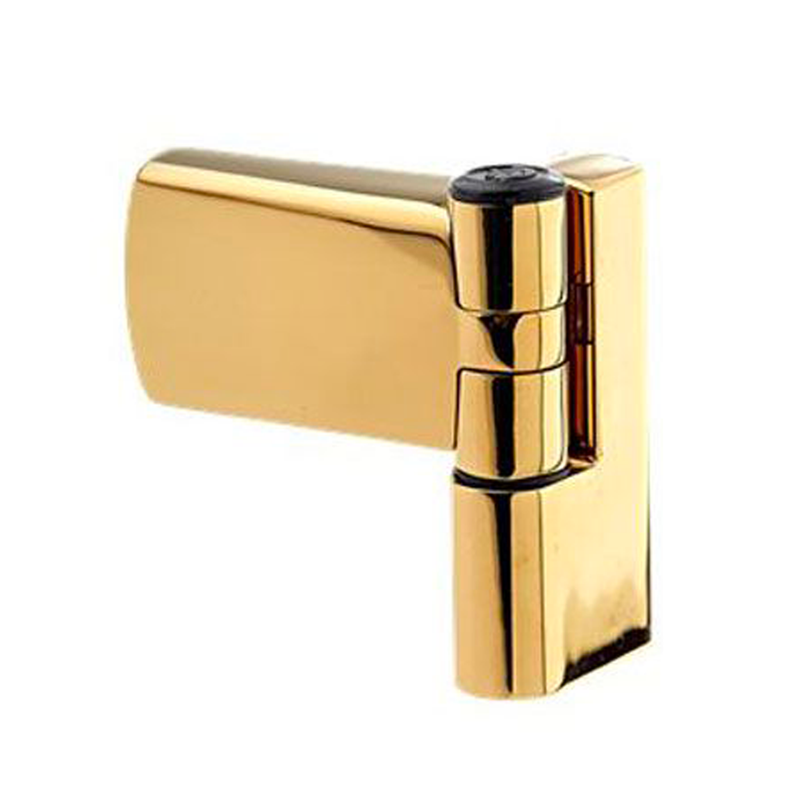

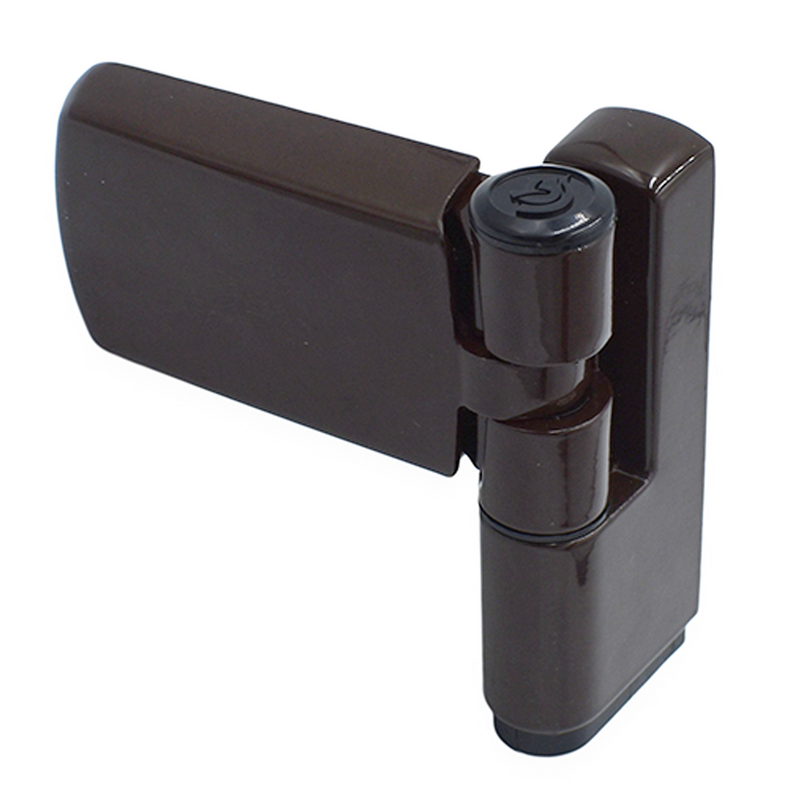

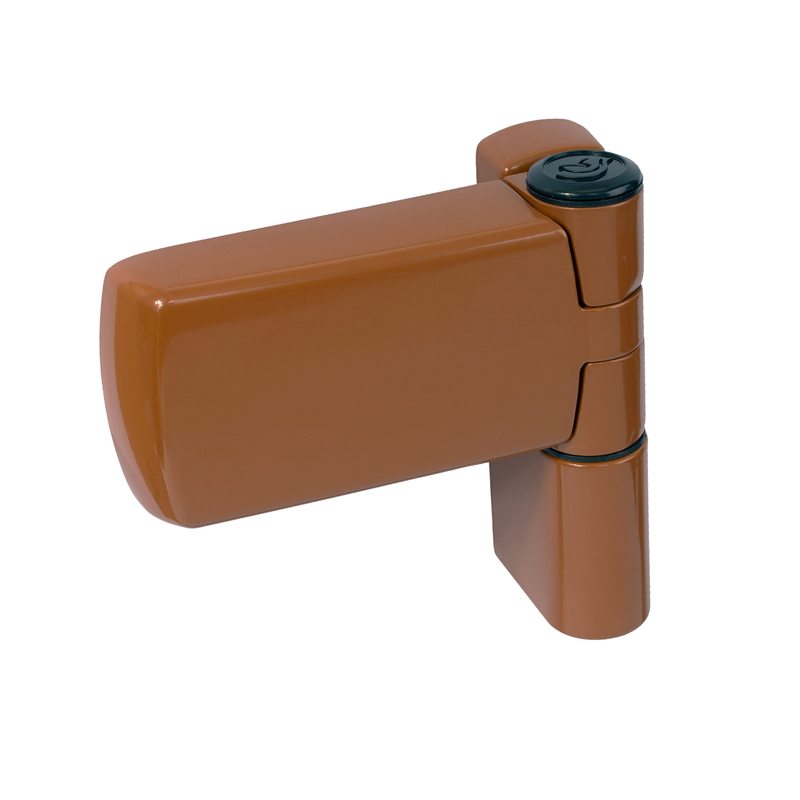

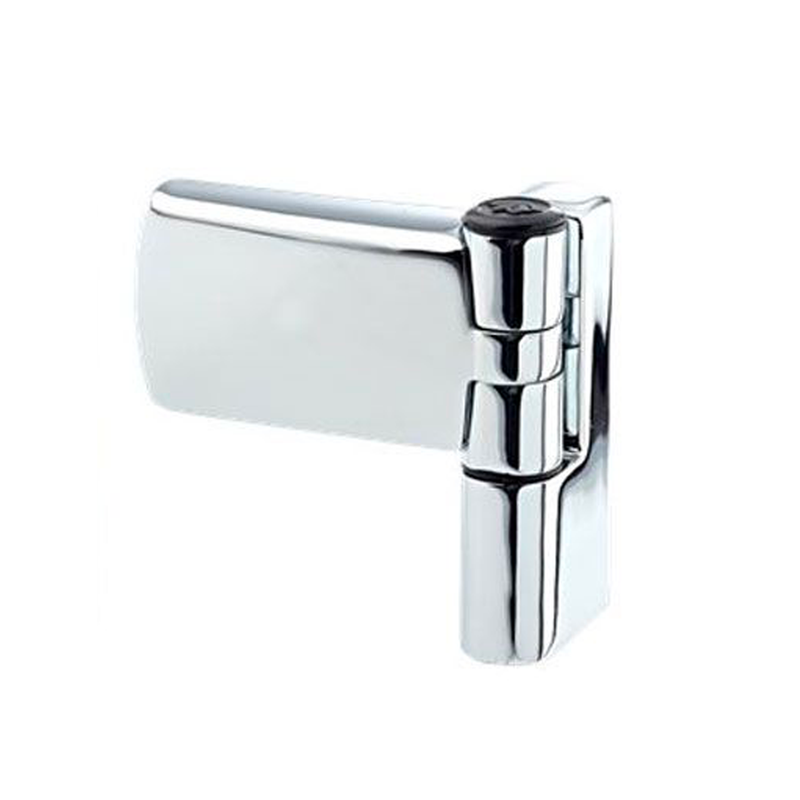

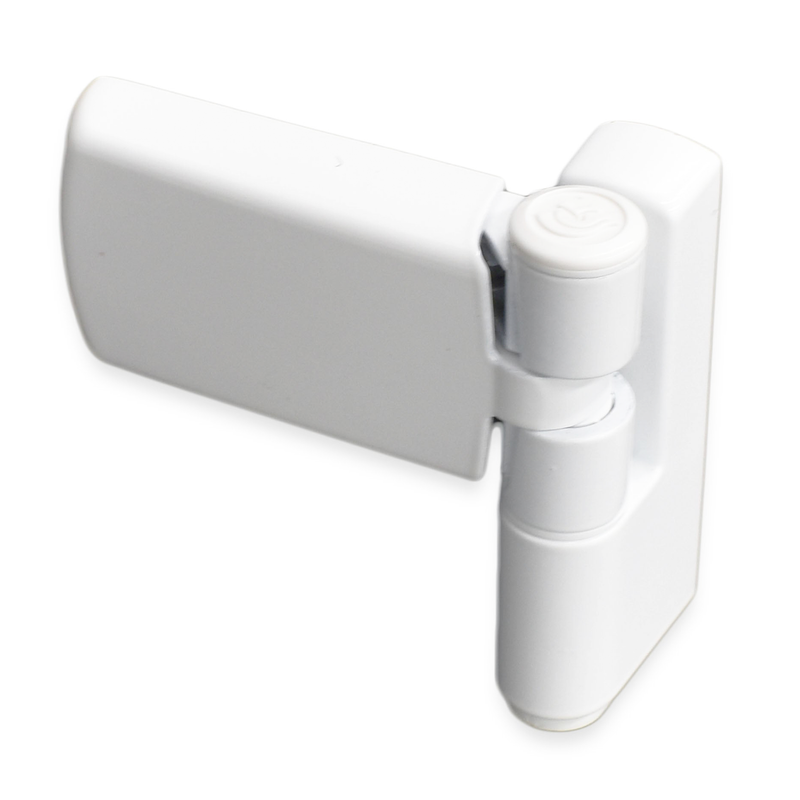

UPVC Door Flag Hinge Trojan Patriot Plus High Security 3D Adjustable PAS24

The Patriot Plus High Security Door Flag Hinge combines an aesthetically pleasing slim appearance, a great range of stylish colours with easy and accurate 3D adjustment, and offers no visible gap between flag and base (with height adjustment).

These hinges come pre-assembled and are ready to fit, making them very installer friendly! No visible fixings, improved clearance for plaster line and finishing, non-handed design, and additional location pins to reduce twist - all contribute to making these hinges a number one choice amongst fitters.

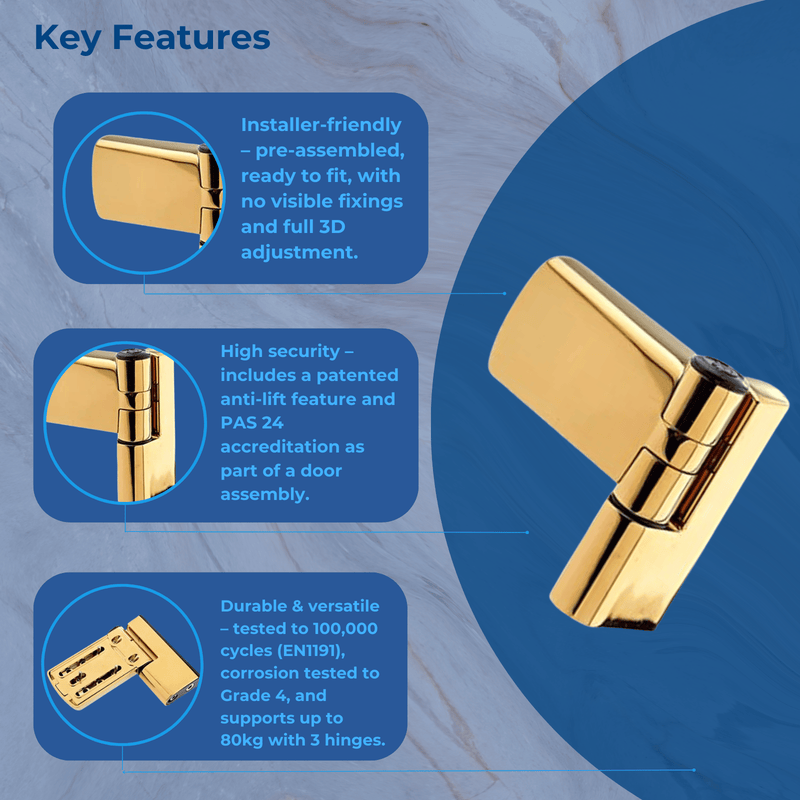

Features:

• Pre-assembled ready to fit
• Patented anti-lift feature
• Non handed
• Slim frame plate
• No visible fixings
• Additional location pins to reduce twist
• Full 3D adjustment
• Height: +8mm, Compression: +/- 1.5mm, Lateral: +/- 6mm
• Vertical adjustment with no gap created between flag and base

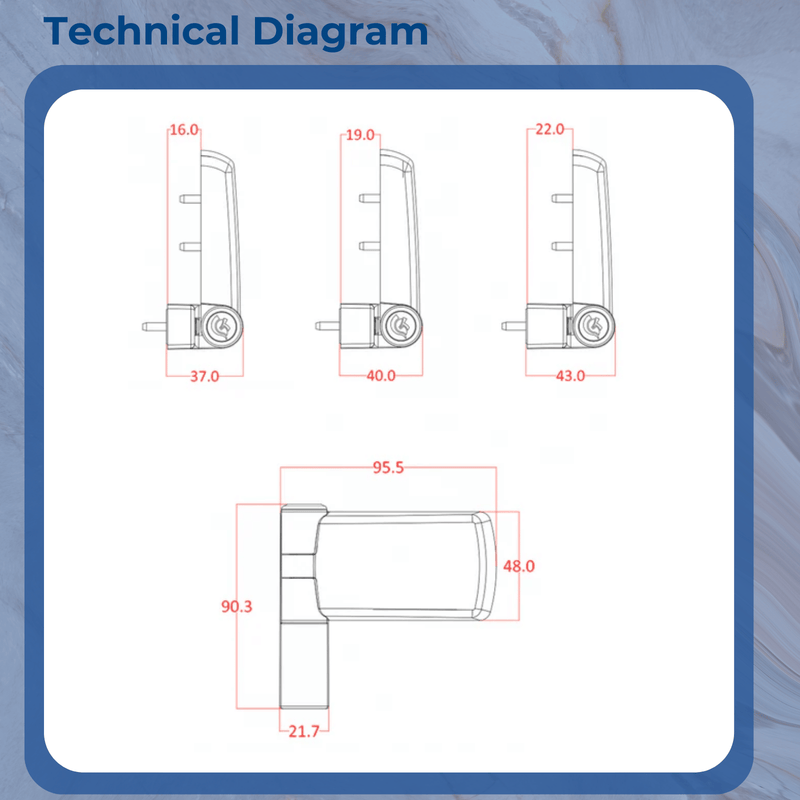

• Available in three heights: 16mm, 19mm and 22mm
• Maximum Weight Carrying Capacity: 3 hinges carry 80KG
• PAS 24 accredited as part of a door assembly
• Corrosion tested to Grade 4
• Conforms to EN1191 – tested to 100,000 cycles
• Material: Zinc alloy, Stainless Steel - Grade 430, Plastic - GF Nylon, UV stabilised ABS and Acetal
• Suitable for profile upstands from 16 to 22mm
