AXIM Flush / Shoot Bolt

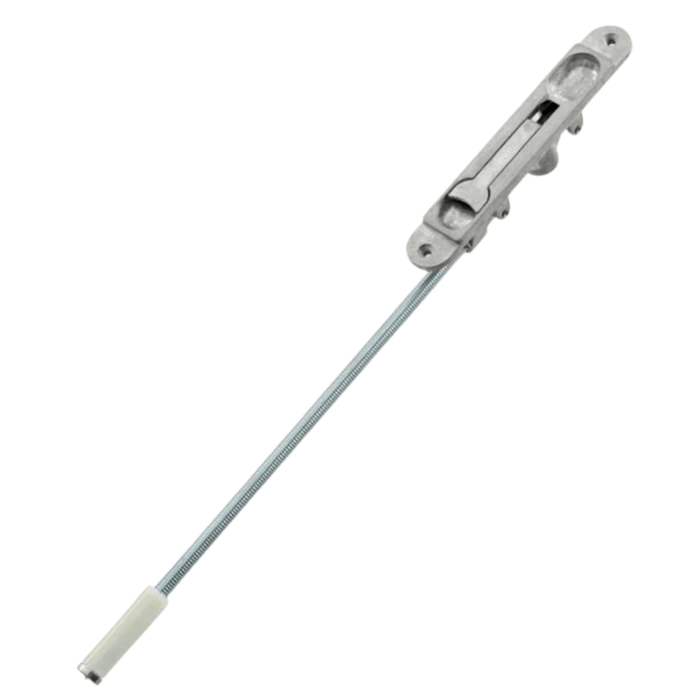

The FB-6200, FB-6300, and FB-6400 series finger-operated flush bolts are designed to secure the passive leaf of double aluminium door assemblies. These flush bolts are rebated into the leading edge or inner face of the door and operated via a lever that sits flush when the bolt is engaged, providing a clean, streamlined appearance when the door is closed. For smooth operation, the Axim FB series features a deep finger recess and a large lever. Standard installations typically require two flush bolts—one morticed into the top and the other into the bottom of the door. For enhanced security, the Axim flush bolt includes a hardened steel bolt, zinc-plated, and equipped with an anti-rattle sleeve.

Key Features:

• Smooth lever-action flush bolts
• Installed in the leading edge or inner face of the passive door leaf
• Available with radiused or flat face options
• 305mm length
• Silver satin chrome finish
• Durable zinc-plated hardened steel bolt with anti-rattle sleeve
• 18mm bolt stroke
• Fully threaded 7mm zinc-plated steel rod, adjustable for non-standard door sizes
• Centre punch provided for precise keep alignment
• Pre-drilled, countersunk holes for M fixings
• All necessary fixings included for easy installation

Guarantees & Accreditations:

• Complies with EN 1154
• Backed by a 30-month manufacturer’s guarantee
