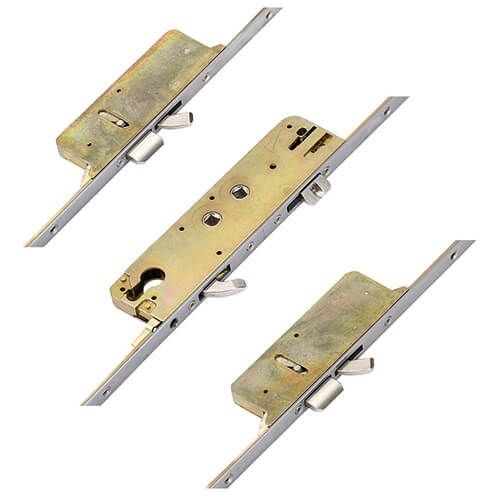

Millenco Mantis 2 Latch 3 Hooks 2 Deadbolts Option 2 Double Spindle

The second generation Millenco Mantis lock features 65/95mm centres and is available in 2 variations. This lock features 1300mm hook centres and has a 20mm radius faceplate.

Operation: Lift lever or double spindle.

Latch reversal: Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s).

Technical Information-

• Centres: 62mm/95mm
• Case height: 205mm
• Case depth: 55mm
• Overall length: 1600mm
• Faceplate width: 20mm
• Distance between hooks: 1300mm
• Distance between deadbolts: 1320mm
