Res-Lok Concealed Window Restrictor Child Lock

Whats Included Per Purchase:

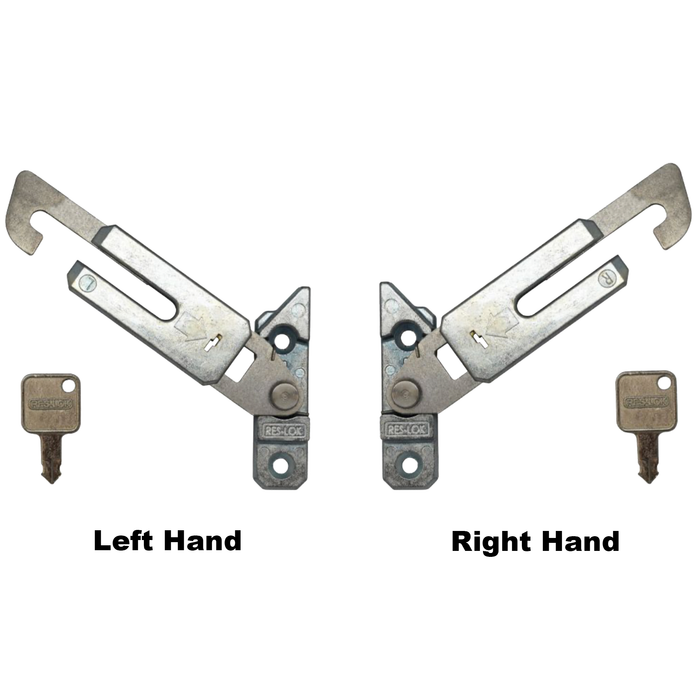

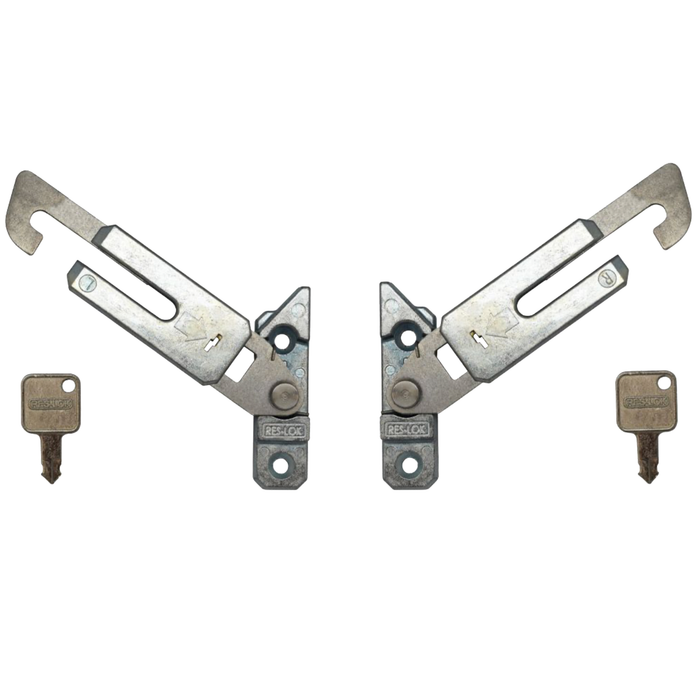

1 x Rh or LH restrictor (or both if ordered a pair)
1 x Fixing stud per restrictor
1 x key per restrictor

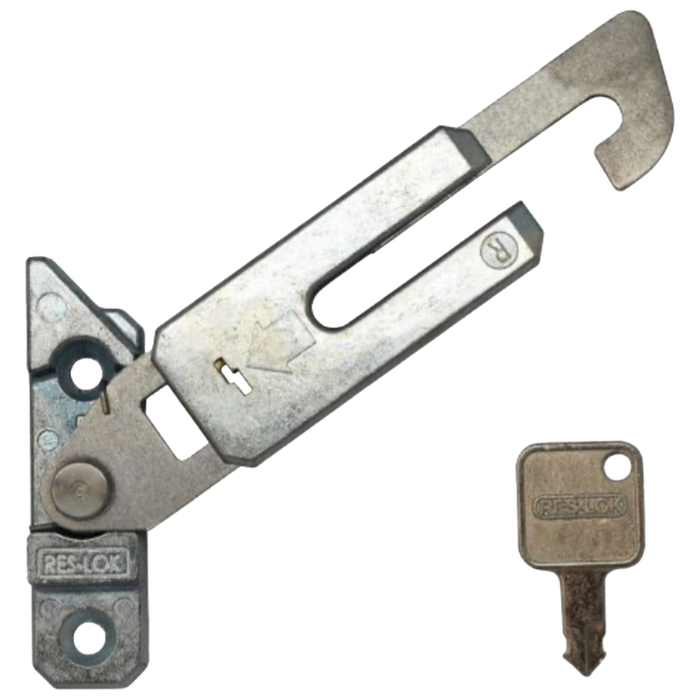

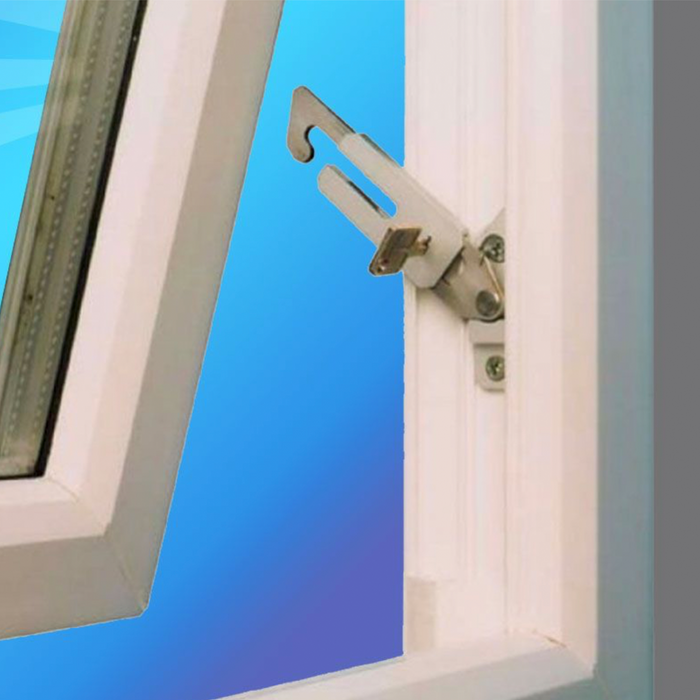

Res-Lok window restrictor from J.Banks is an ideal child lock. This handy device restricts the opening of a window to 100mm and requires the use of a key to unlock.

Key features:

• Designed to suit side hung or top hung applications
• Auto-locking
• Release with key
• Suitable for uPVC, Aluminium & Timber windows
• Eurogroove or surface mounted
• Can be retro-fitted
• Restricts sash to 100mm

Dimensions

• Arm length: 105mm
• Screw centres: 37mm
• Frame part width: 16mm

Specification:

• Conforms to BS6375 Part 2:1987
• Constructed from stainless steel & zinc alloy

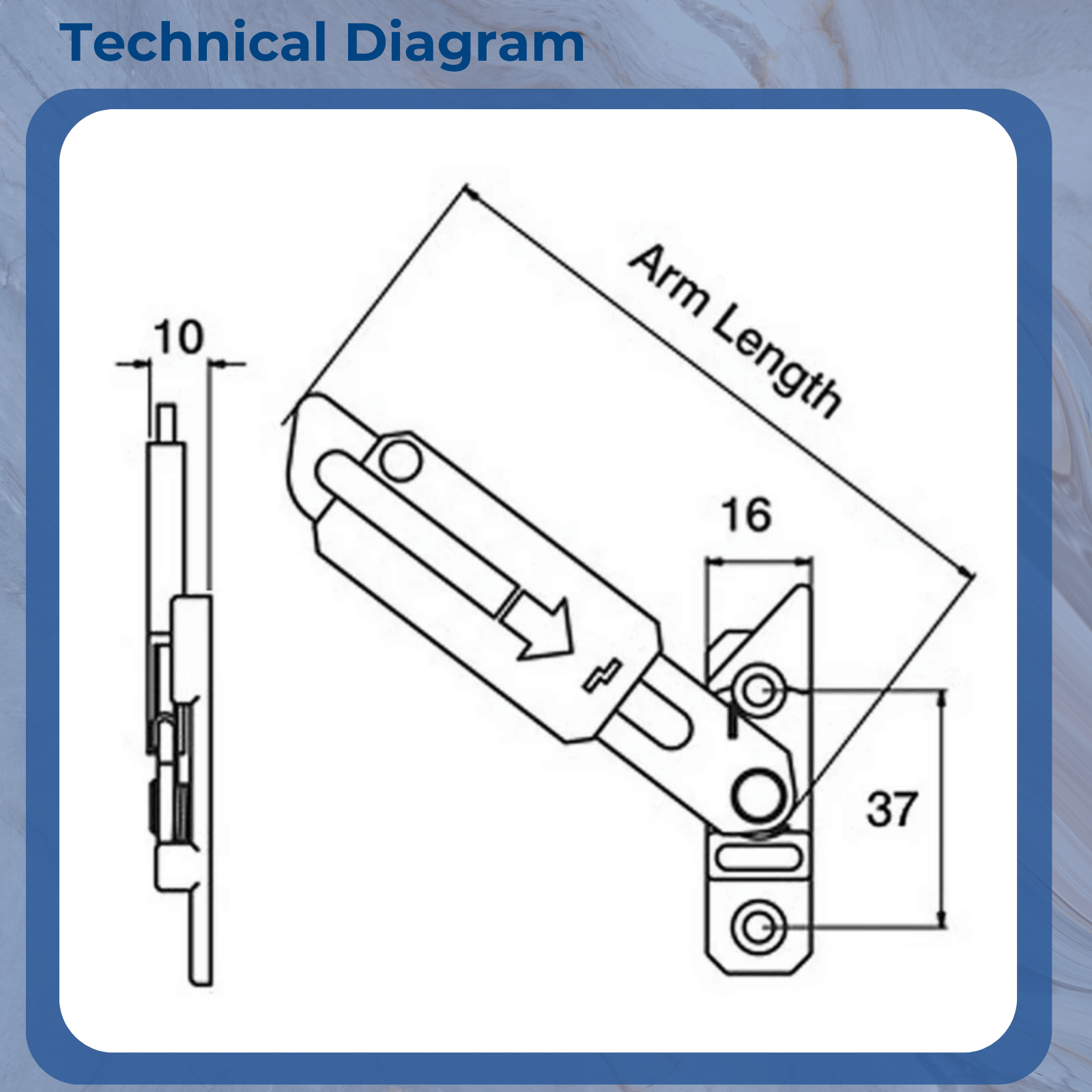

Technical Diagram:
