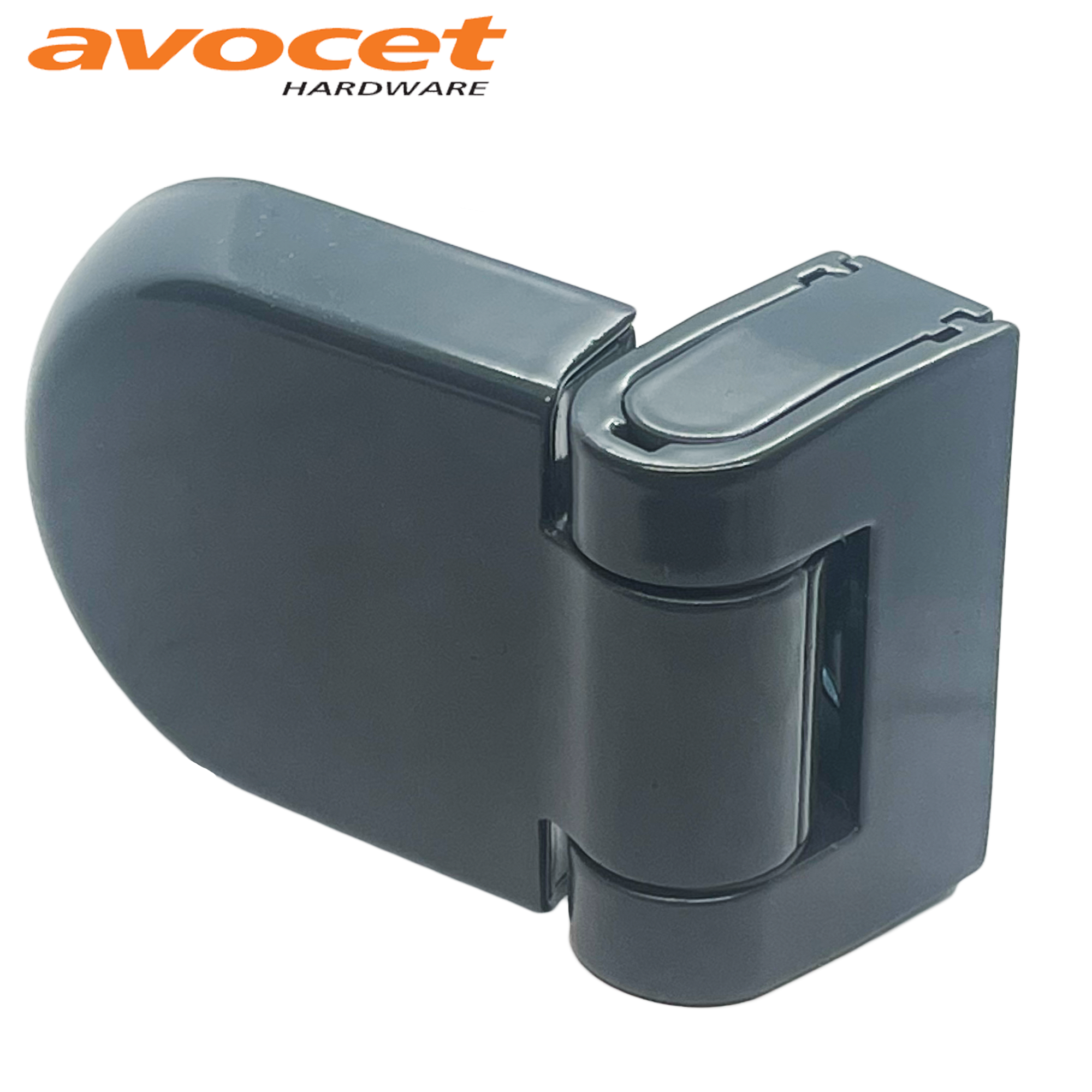

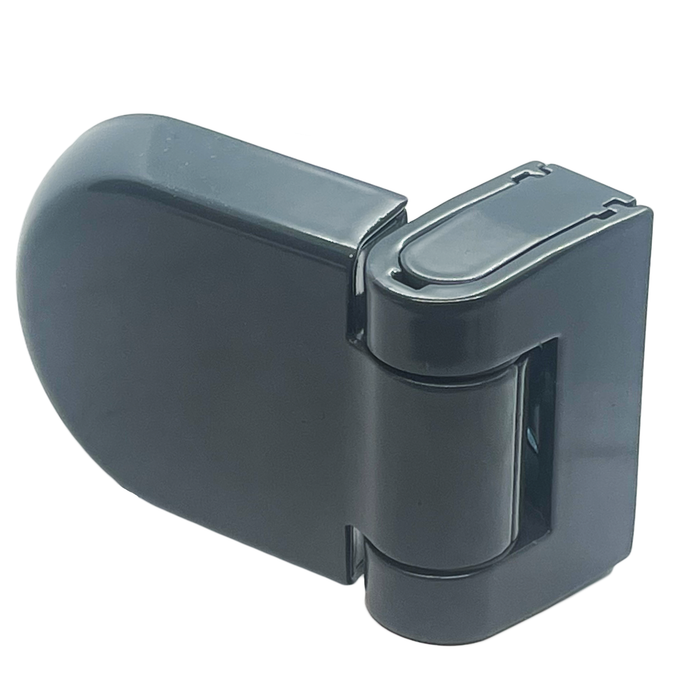

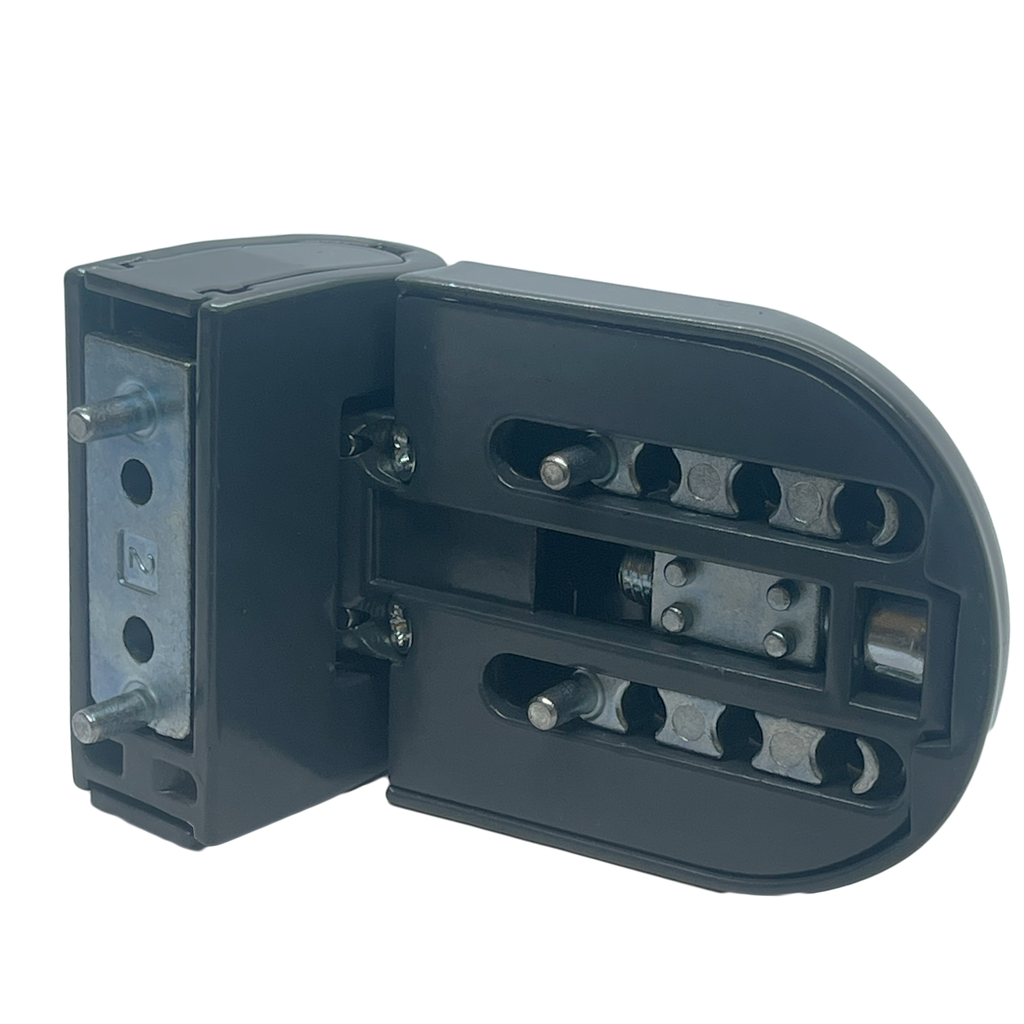

Affinity 3D Hinge Anthracite Grey RAL 7016 21mm Rebate Double Glazing Door Flag Hinge Adjustable
by Avocet
Sold out
Original price
£14.96
-
Original price
£14.96
Original price
£14.96
£14.96
-
£14.96
Current price
£14.96
Assessment Data
Performance: Endurance tested to 100,000 operations in accordance with BS EN 12209:2003
Corrosion resistance: All finishes meet the requirements of BS EN 1670 – grade 5 (500 hrs Salt Spray)
Material Specifications
Hinge leaf, plate and body: Zinc Alloy BS1004A
Top/Bottom Bush: Nylon 6
Screws and Pins: Stainless Steel
Powder Coating: Anthracite Grey, 60 microns min coating thickness
5 minutes is all it takes to install 3 on a door
Only 4 parts and no packers or shims required
To suit rebate heights of 21mm
Encapsulated butt design ensures ease of installation

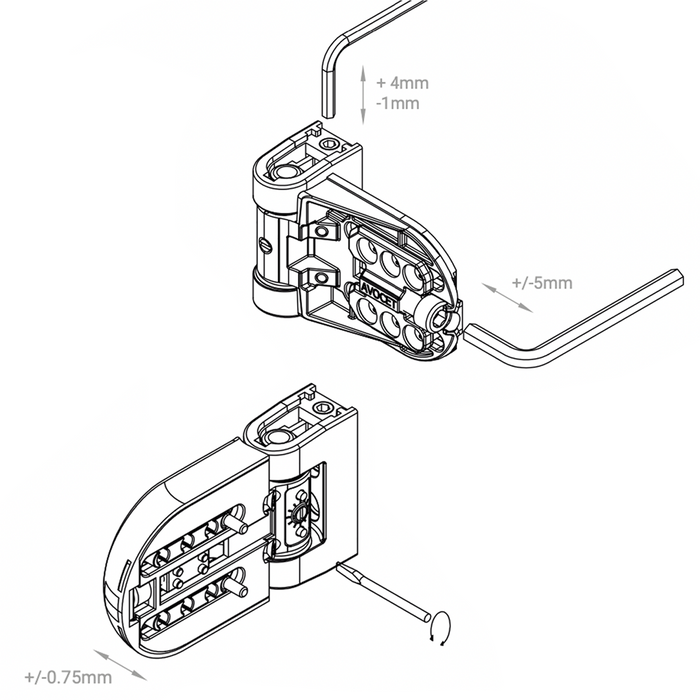

Independent compression adjustment
Suited with the Affinity Door handles, window handles, letterplate and door knocker
Metal colour matched caps – no plastic inserts
Adjustment instructions included on a protective hinge label

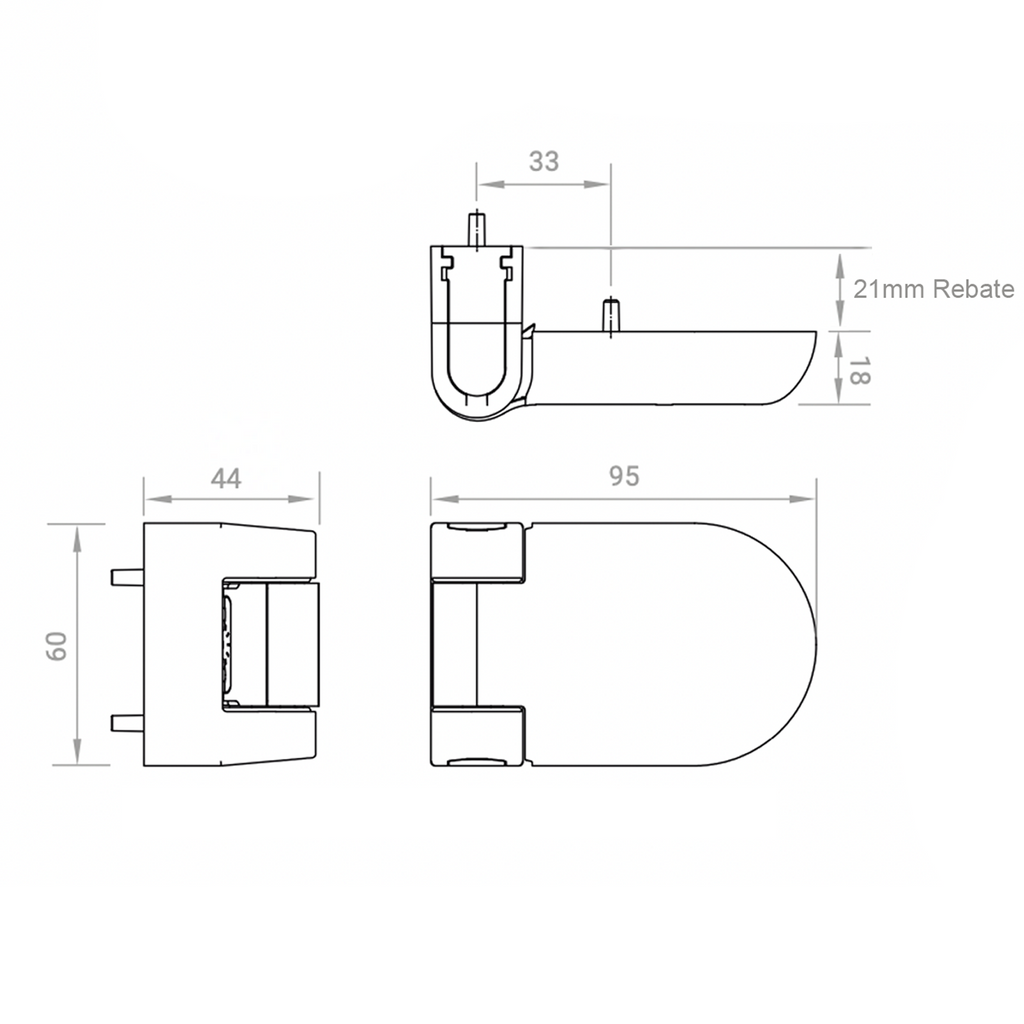

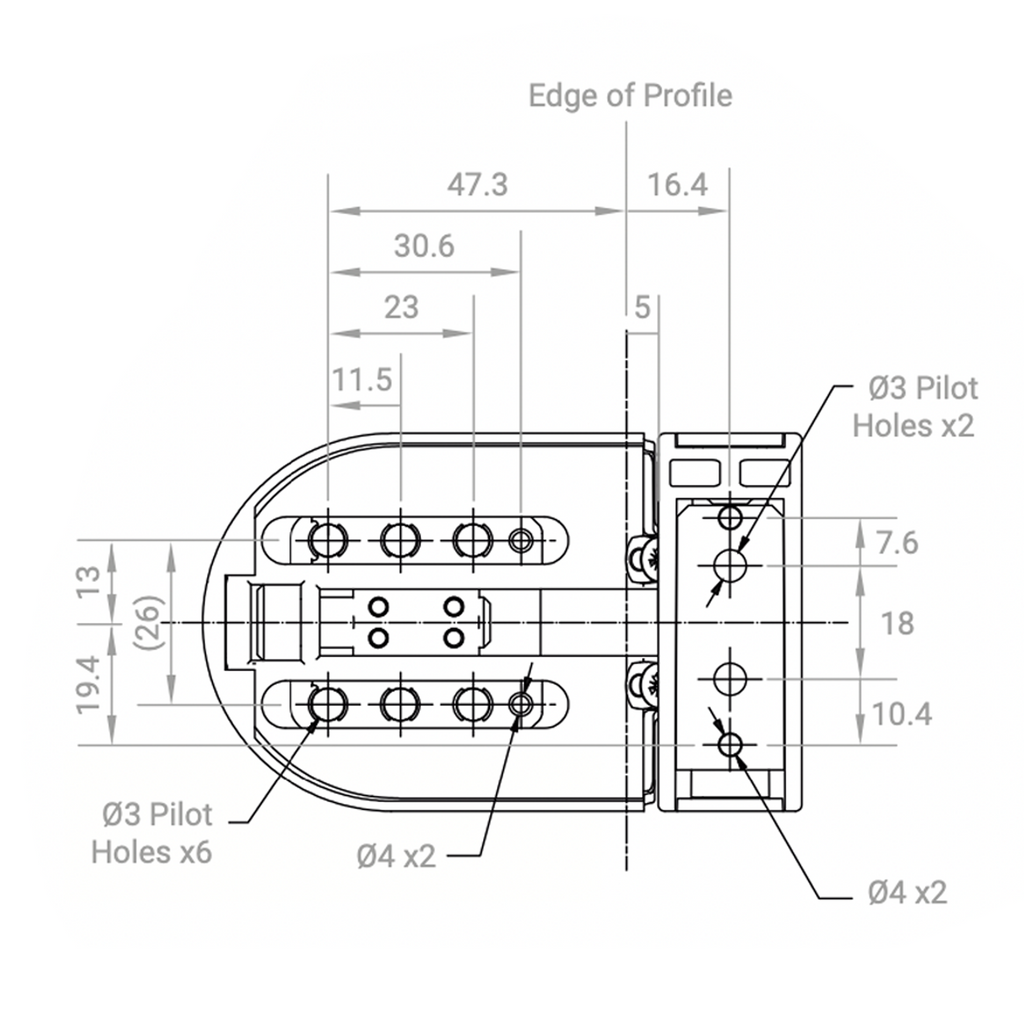

Technical Measurements
Performance: Endurance tested to 100,000 operations in accordance with BS EN 12209:2003
Corrosion resistance: All finishes meet the requirements of BS EN 1670 – grade 5 (500 hrs Salt Spray)
Material Specifications
Hinge leaf, plate and body: Zinc Alloy BS1004A
Top/Bottom Bush: Nylon 6
Screws and Pins: Stainless Steel
Powder Coating: Anthracite Grey, 60 microns min coating thickness
5 minutes is all it takes to install 3 on a door
Only 4 parts and no packers or shims required
To suit rebate heights of 21mm
Encapsulated butt design ensures ease of installation
Independent compression adjustment
Suited with the Affinity Door handles, window handles, letterplate and door knocker
Metal colour matched caps – no plastic inserts
Adjustment instructions included on a protective hinge label
Technical Measurements
