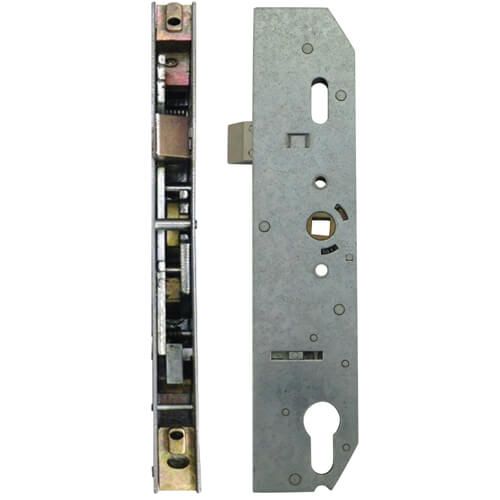

Mila Coldseal Gearbox Latch Only Version 28mm Backset

This Mila copy gearbox has a latch only with a single 8mm spindle.

Also known as Coldseal and Swiftlocks.

M4 x 10mm self-tapping machine screws need to be used with this lock as screw holes are unthreaded.

The connectors for this lock sit over offset to one side, there are variations which feature central inline connectors, if you are replacing a central inline version adjustments will need to be made, please ask our technical department for advice should you need assistance.

If your variation features a packer piece with 4500 cast into the metal please see our part number - MILALATCH4500

Operation: Lift lever

Latch reversal: Undo the screw in the side of the lock case to remove the latch, reverse, reinsert and replace the screw
