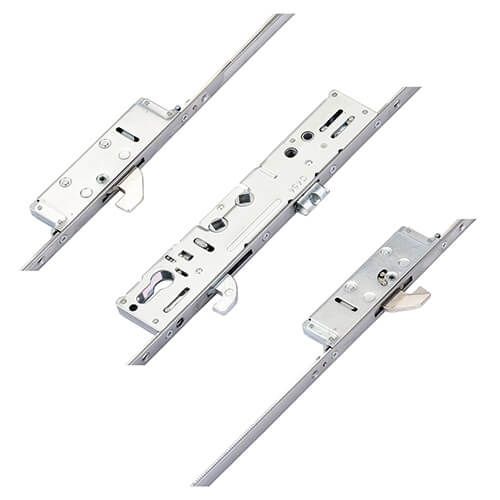

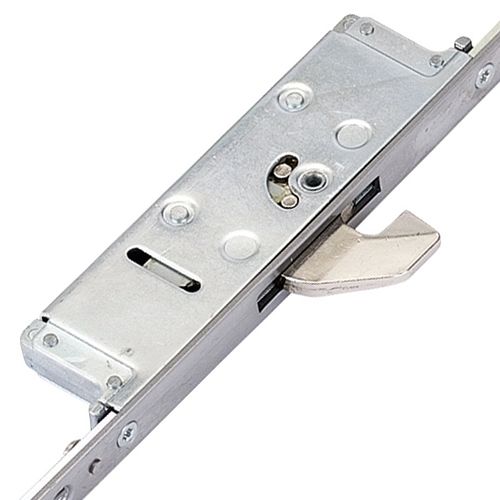

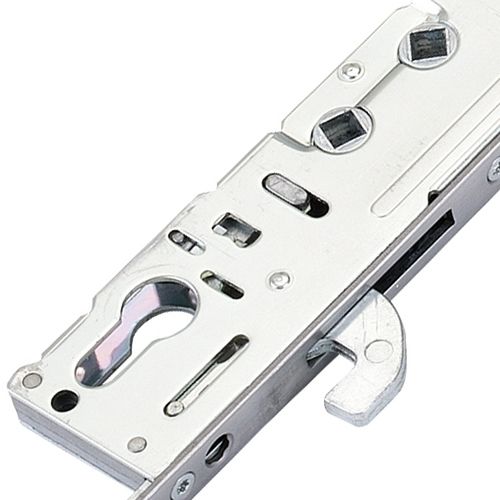

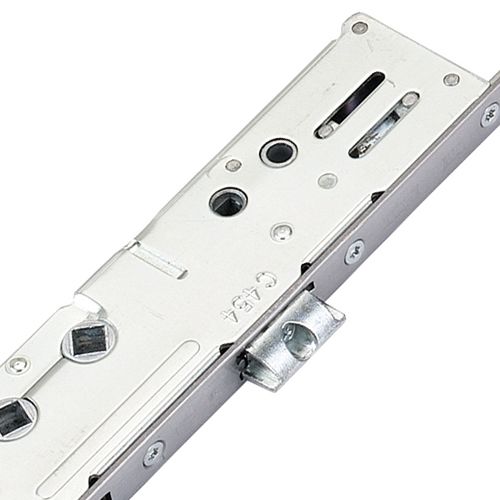

Safeware Latch 3 Hooks Double Spindle

This Safeware lock features a gearbox with a hook which is a longer version of the Lockmaster centre case.

Operation: Lift lever or double spindle nightlatch.

Latch reversal: Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s).

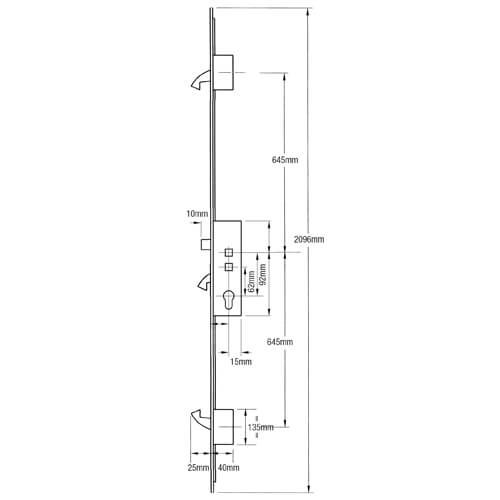

Technical Information-

• Centres: 62mm/92mm
• Case height: 255mm
• Case depth: 50mm
• Overall length: 2096mm
• Distance between hooks: 1290mm
