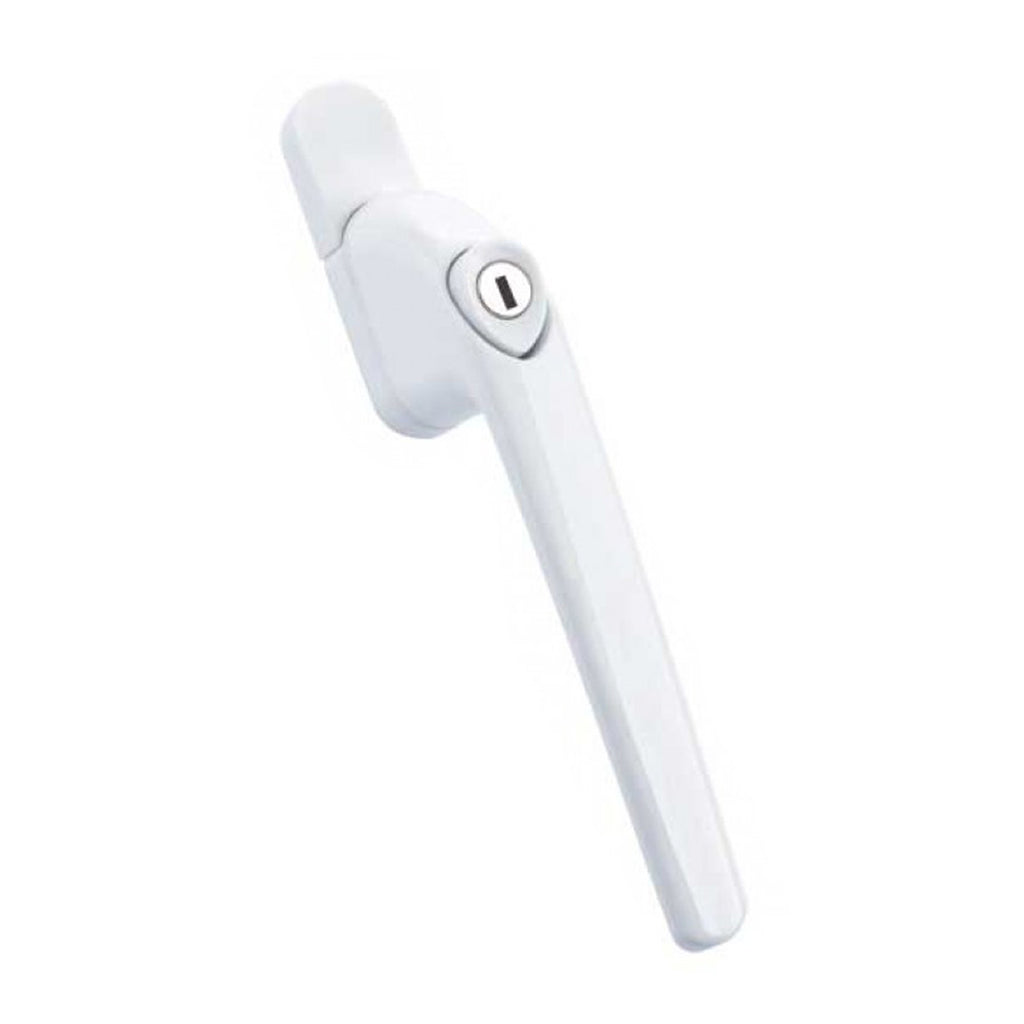

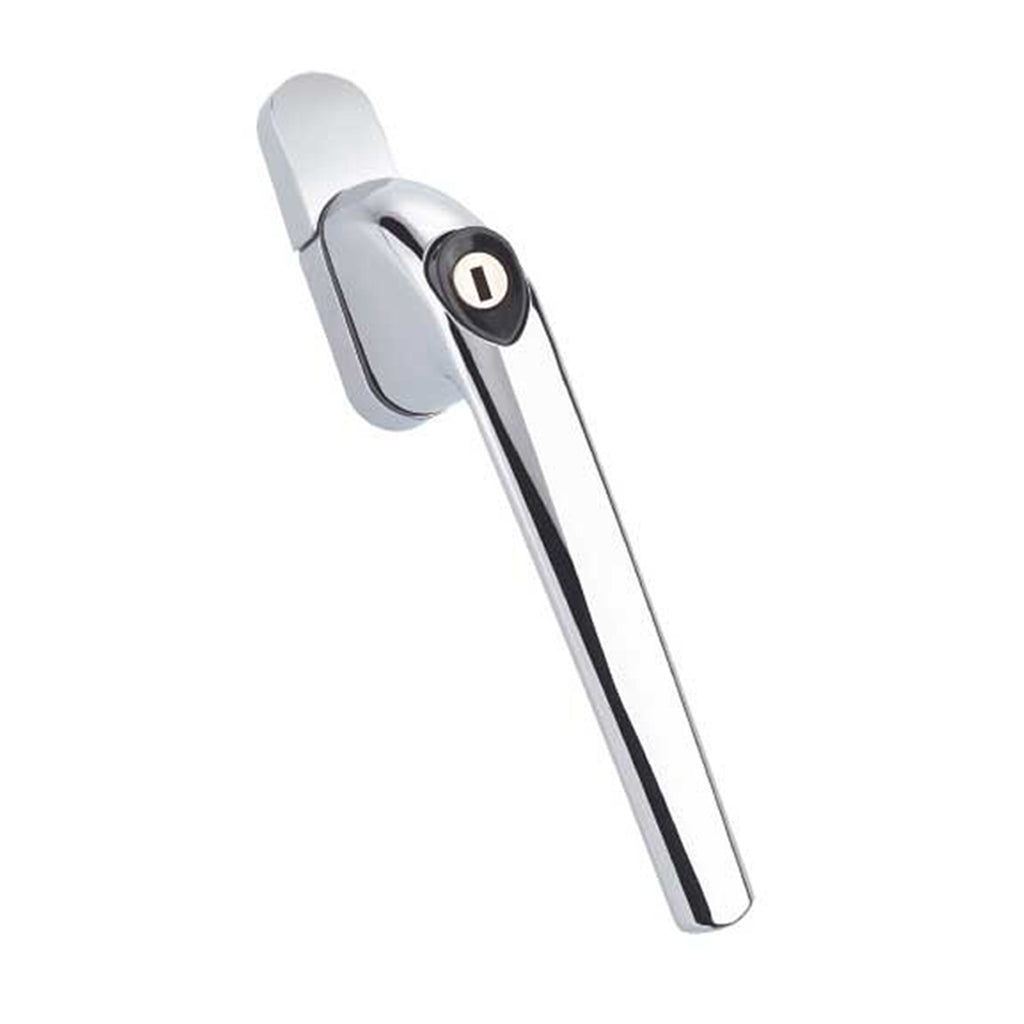

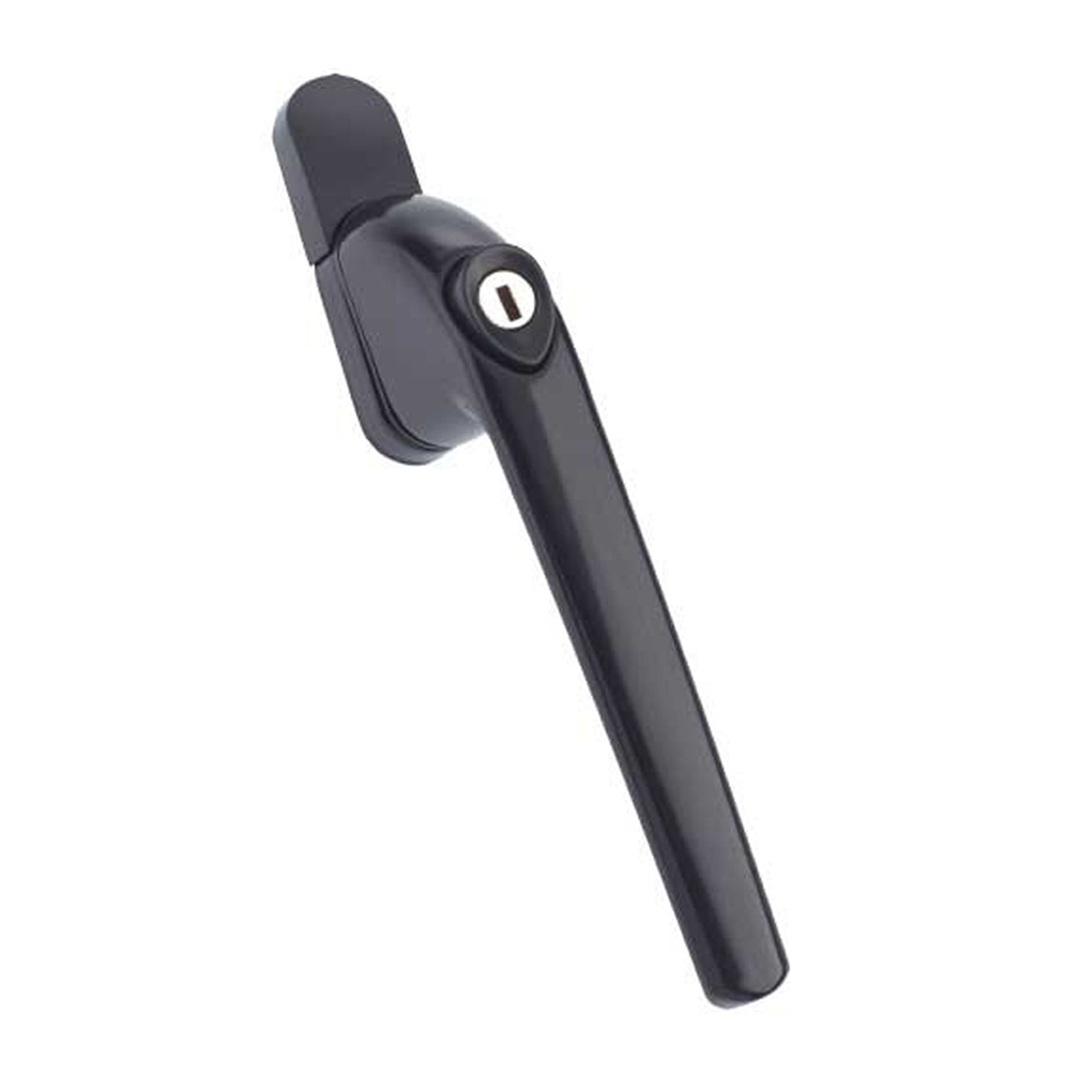

UPVC Universal Inline Window Handle Double Glazing Espag Lock Smart Spindle Mila

The Smart Spindle espag handle is perfect for maximum choice of spindle lengths with minimum stock holding.

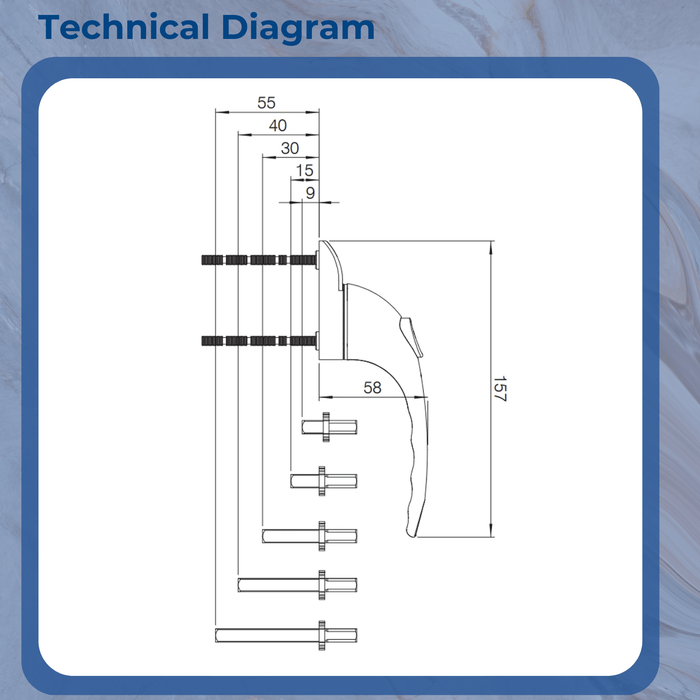

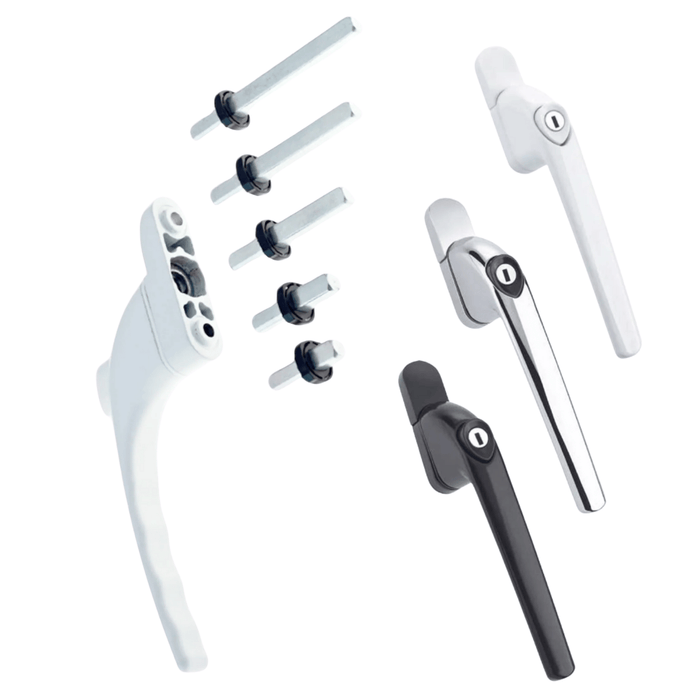

Supplied with 5 interchangeable pin lengths:

• 9mm, 15mm, 30mm, 43mm, 55mm

Features:

• Pins locate into the back of the handle rose with ease.
• A clever one-way fit rosette ensures that only the correct end of the spindle can be inserted for a secure fit.
• The rosette allows positive location with an audible ‘click’ when the lever is rotated through 90°.
• Edge-to-edge screw cover cap enhances aesthetics on the rose for a contemporary look.
• Finger-grips on the lever provide optimum comfort when the handle is in use.
• Manufactured from high-performance zinc alloy.
• Operational reliability - tested to 50,000 cycles at Mila Test Centre.
• Corrosion resistant - salt spray tested to 240 hours (plated finishes) and 480 hours (powder-coated finishes).
• Meets the enhanced security requirements of PAS24: 2016.
• An ergonomic button assembly is easy to operate.
• Supplied complete with cut-off screws as standard.
• Suitable for PVCu, aluminium, and timber applications.
