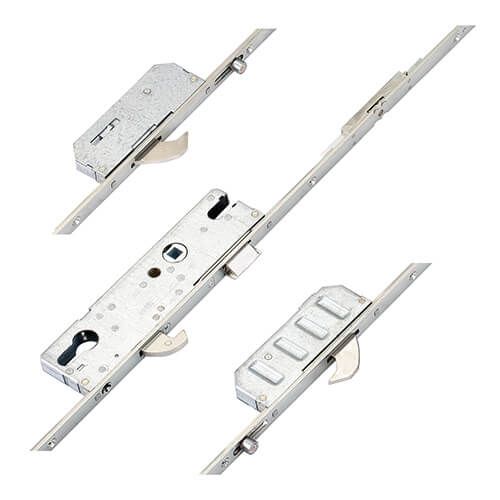

Winkhaus Scorpion Latch 3 Hooks 2 Rollers Split Spindle 35mm Backset

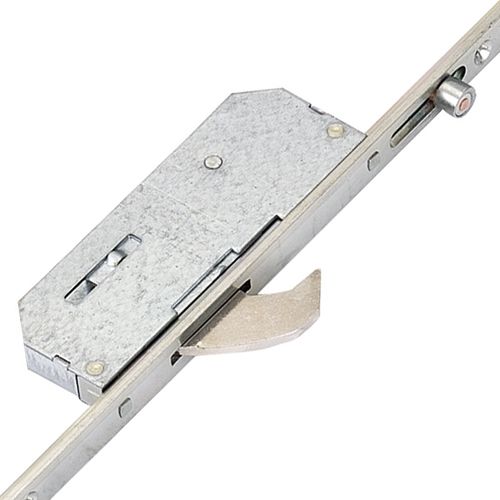

This Scorpion lock features rollers as well as hooks for compression. If lift lever function is required, use with a solid spindle. 2 versions of this lock are available, with 1390mm and 1250mm between the hooks. This version has 1390mm between the hooks. For the narrow version, see the next page.

Operation: Lift lever or split spindle nightlatch.

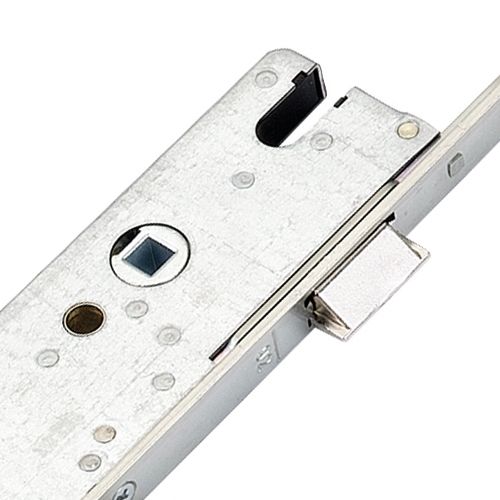

Latch reversal: Push in latch a screw will appear in back of lockcase. Undo the screw to remove the latch. Reverse, reinsert and replace screw.

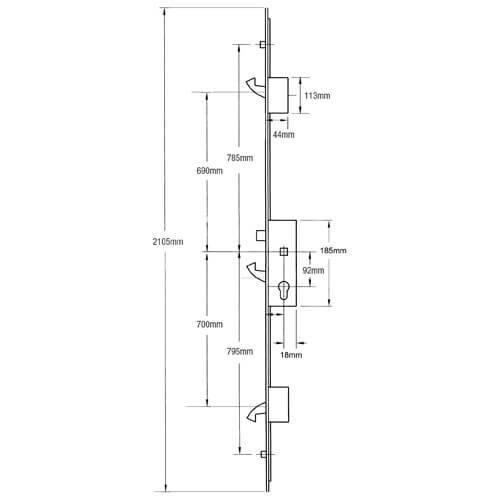

Technical Information

• Centres: 92mm
• Case height: 185mm
• Case depth: 53mm
• Overall length: 2105mm
• Distance between outer rollers: 1580mm
• Distance between inner hooks: 1390mm
• Distance between inner hooks: 775mm
